Dual-Layer Spark Resistant Hose

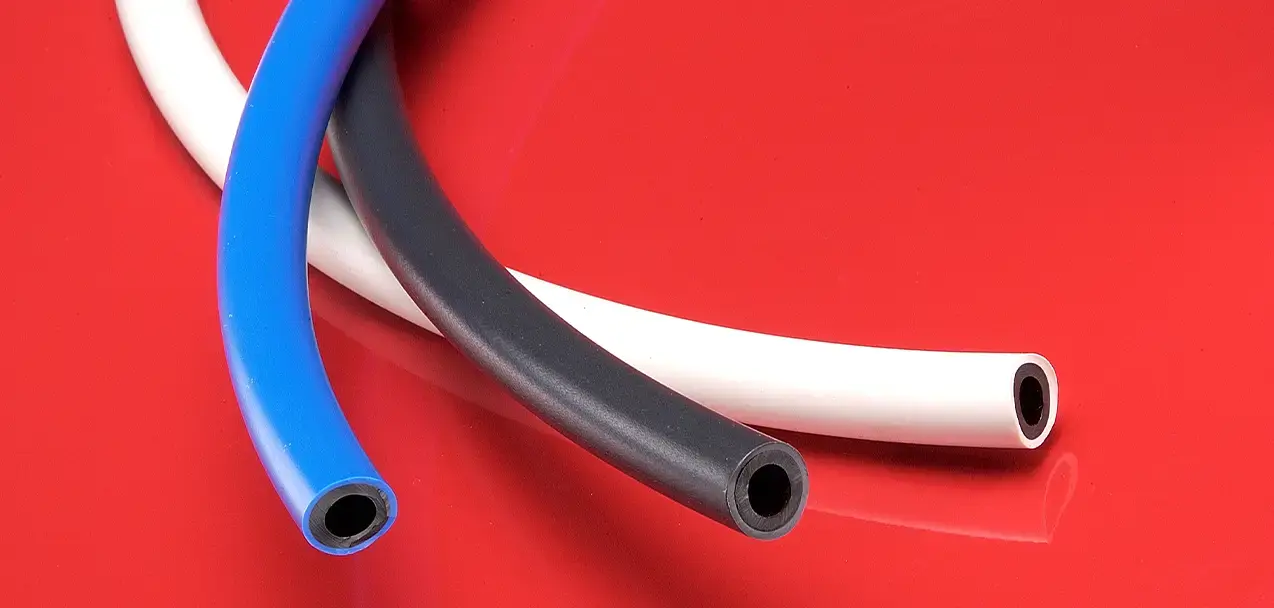

SHPI Spark Resistant Dual-Layer Hose is developed using polyurethane for the inner layer and a specially formulated flame-retardant coating for the outer layer.
This hose is especially suitable for demanding work environments where heat and welding sparks are present. The outer layer protects the hose from welding splatter, preventing potential damage caused by direct contact.
The outer layer complies with UL 94 V-0 standards and offers excellent insulation properties. It is resistant to oil, grease, water-based solutions, ozone, heat aging, and ultraviolet light.
Compared to conventional rubber hoses, SHPI Dual-Layer Spark Resistant Hoses are lighter, making them a preferred choice for automated welding lines.
Features
- Extremely abrasion-resistant alloy outer layer
- Smooth, mark-free, and micro-perforated outer coating
- High flexibility performance over a wide temperature range
- Good fitting retention at high temperatures
- Lighter than rubber hoses and easy to replace
- Silicone-free
Applications
- Air and water transfer
- Transmission fluid and power steering fluid transfer
- Ideal for high-temperature environments
- Induction welding hose lines
- Injection molding cooling lines
- Robotic automotive assembly and pneumatic air lines
Working Pressure
Safety Factor: 3:1
Temperature Range
-20°C to +60°C (-4°F to +140°F)
| Outer Hose Diameter | Diameter Tolerance | Outer Layer Thickness |
| Outer Layer: 8 ~ 14mm | ± 0.10mm | 1mm |
| Inner Hose: 6 ~ 8mm | ± 0.10mm | 1mm |
| Inner Hose: 10 ~ 12mm | ± 0.15mm | 1mm |
Proceed to Datasheet
